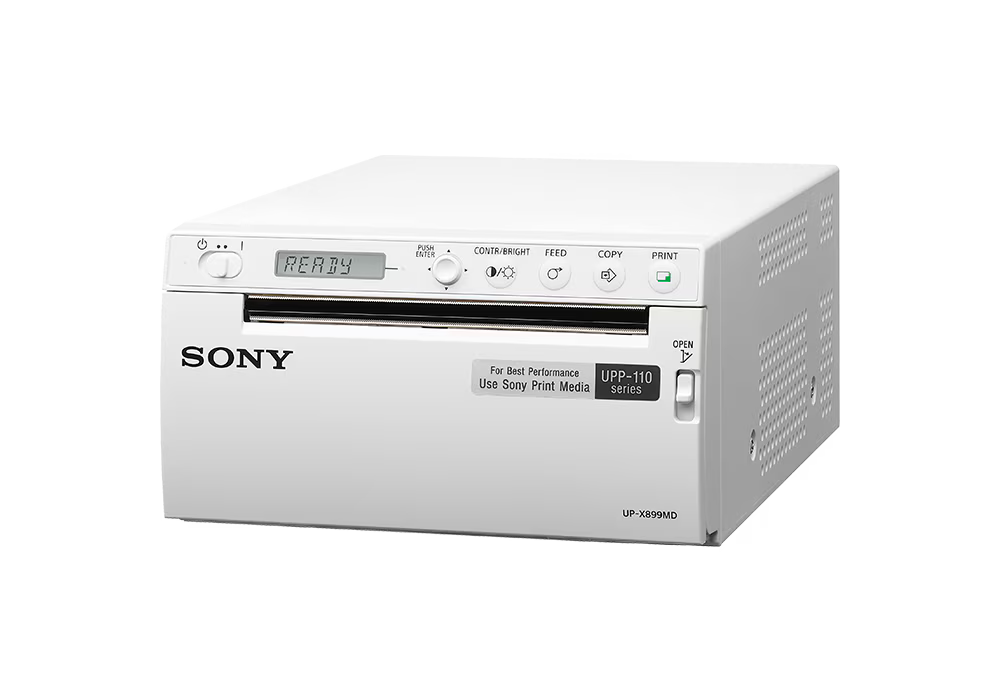

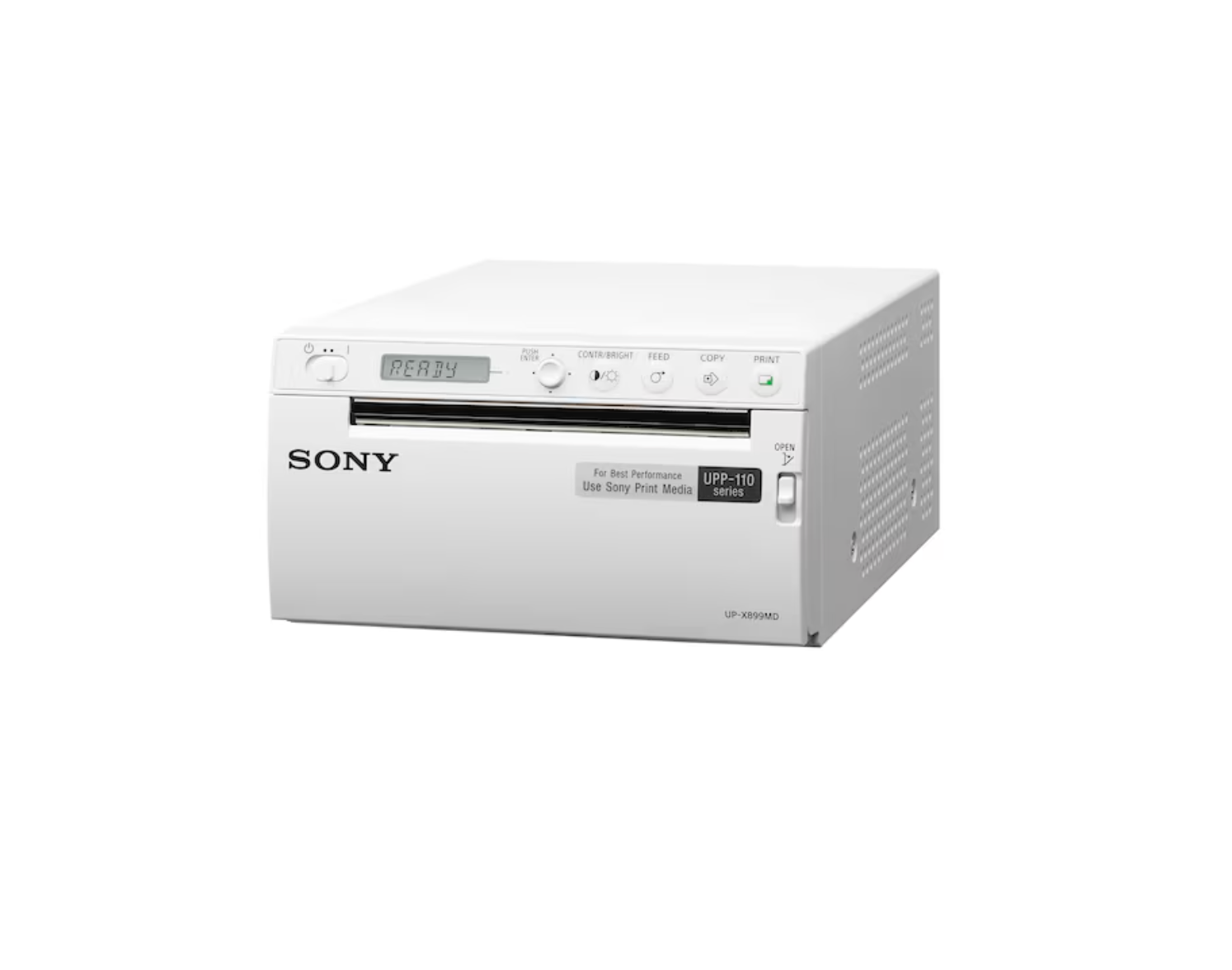

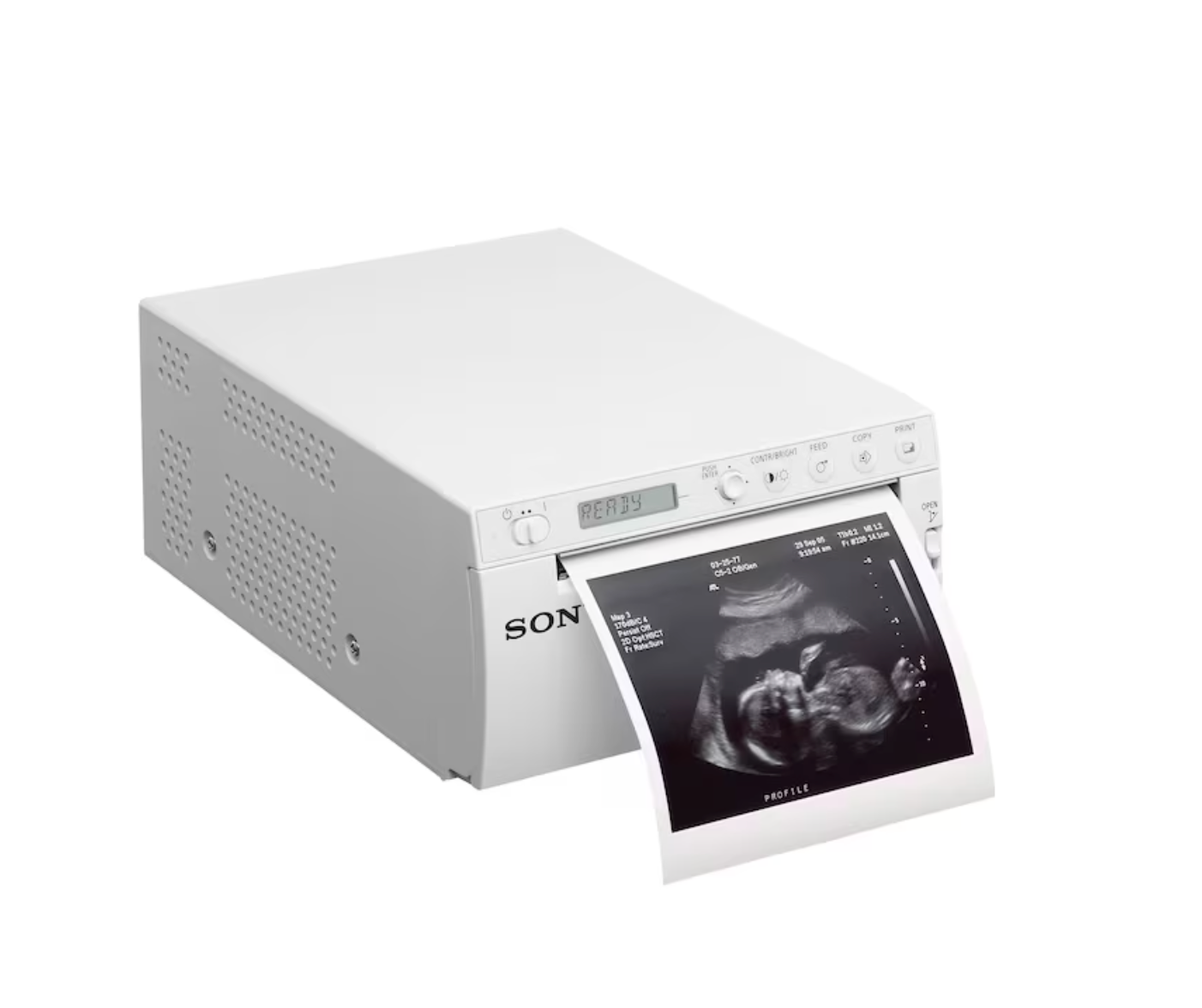

Sony introduces the UP-X899MD, an A6 black-and-white hybrid printer built for ultrasound, endoscopy, and other medical imaging workflows. As the direct successor to the UP-X898MD, it keeps the same compact hybrid design while adding faster print speeds, sharper image accuracy, and a redesigned control panel.
Like its predecessor, the UP-X899MD supports both analog video (BNC) and digital USB connections, so it drops into existing ultrasound carts and imaging systems without requiring a full workflow overhaul. A Hi-Speed USB 2.0 Type-C port lets technicians automatically save printed still images to a connected USB flash drive – no separate capture step required.

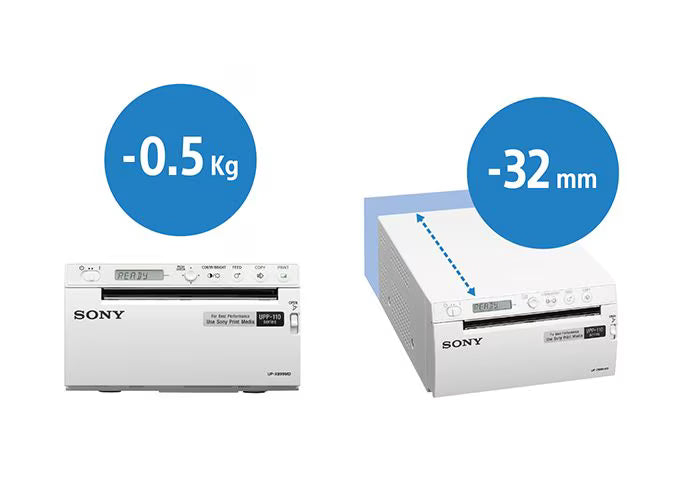

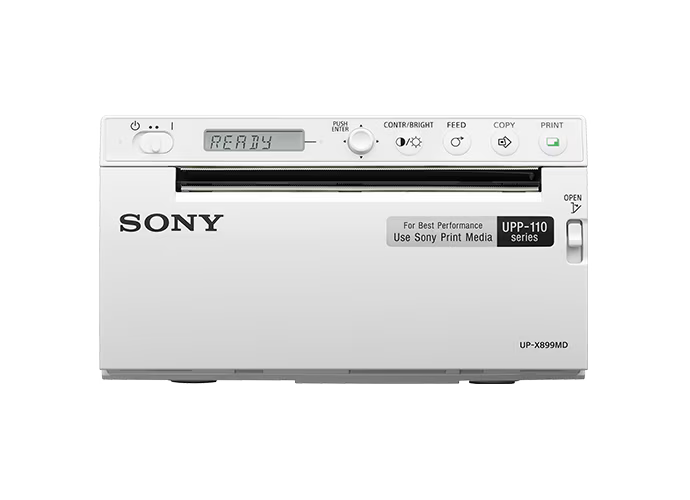

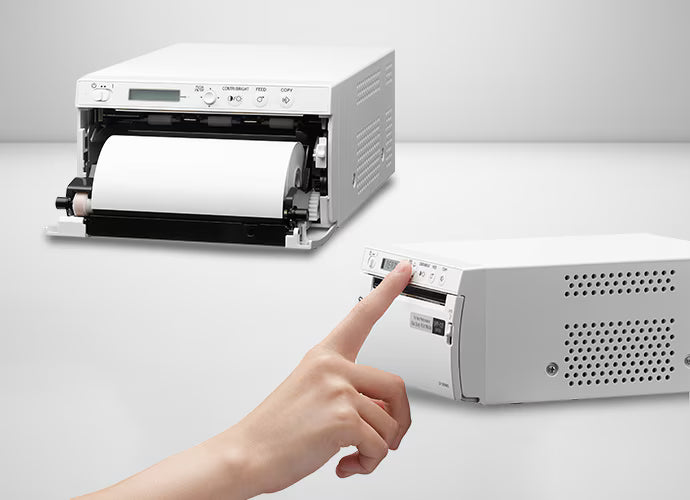

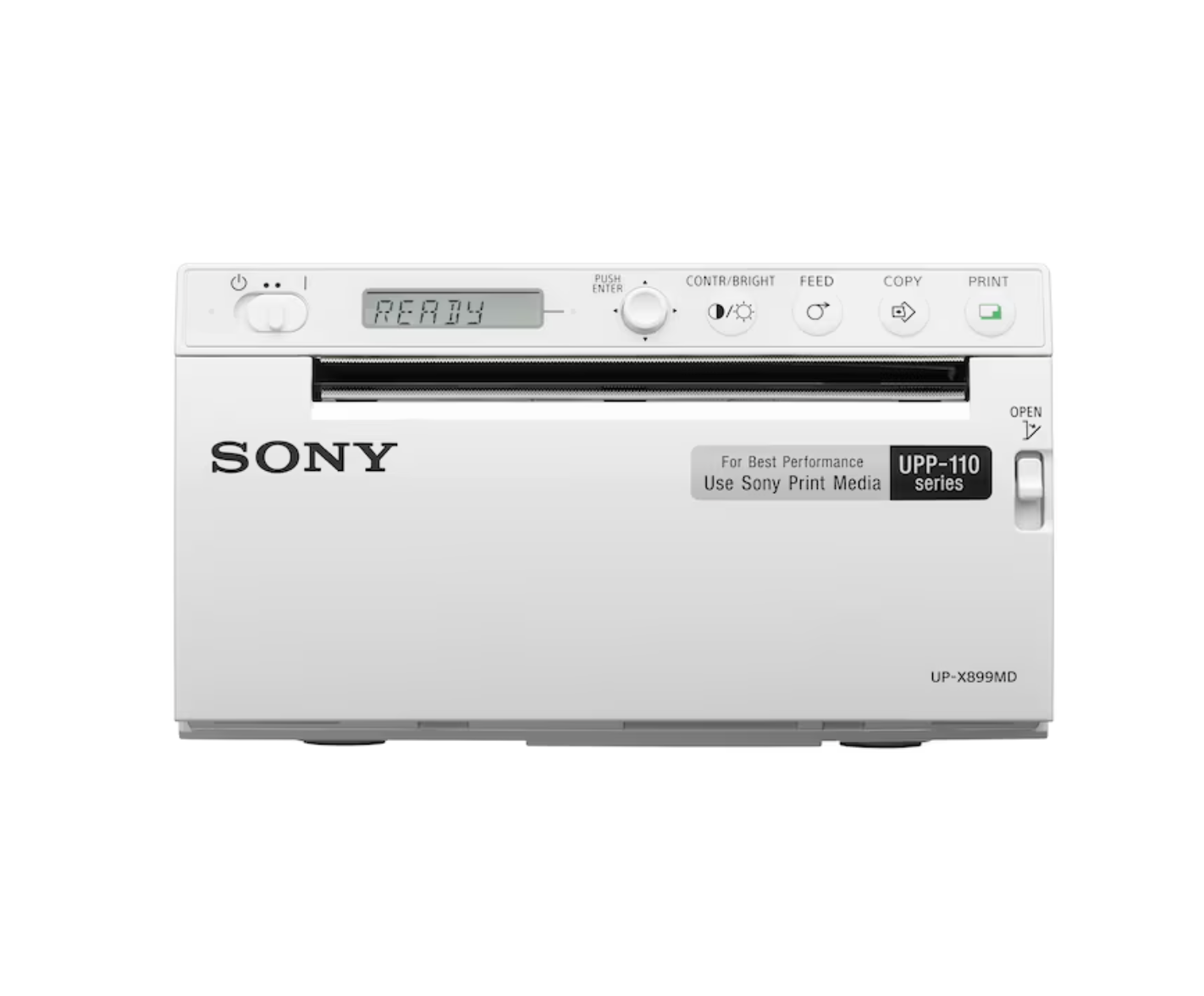

Sony redesigned the front panel with a white backlit LCD, flat control buttons, and a new joystick for faster menu navigation, and reworked the internal cutter so prints can be trimmed upward or downward – a real advantage when the printer sits underneath the ultrasound console. The result is a printer that’s lighter and more power-efficient than the UP-X898MD while staying fully compatible with the UPP-110 media family already stocked by most ultrasound departments.
Highlights:
- Successor to the UP-X898MD - hybrid analog (BNC) and digital (USB) inputs
- Automatic USB flash drive capture for printed still images
- Redesigned front panel with backlit LCD, flat buttons, and joystick control

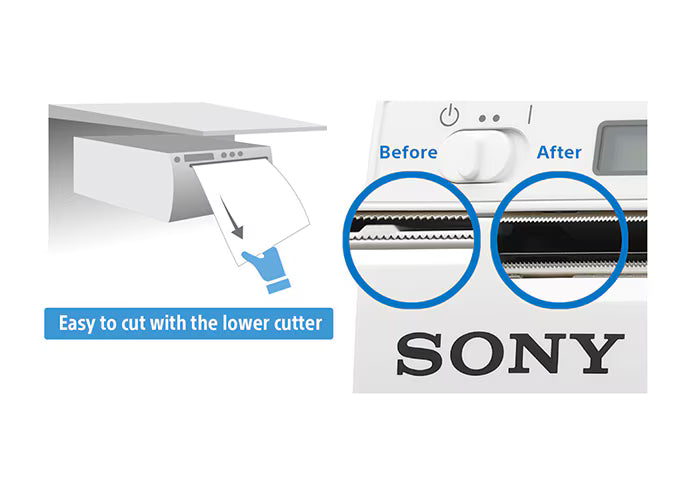

- Improved dual cutter cuts upward or downward for below-console installation
- High-speed printing - approximately 2 seconds per image
- Uses the same UPP-110 series media as the UP-897/UP-898 series: UPP-110HG, UPP-110HD, UPP-110S
- Compatible mode driver support for systems already running UP-898MD/UP-897MD
- Optional UPA-WU10 wireless printing module available
Specifications
- Resolution: 325 DPI, True 256 gray gradation
- Print Speed: Approx. 2.0 seconds/image (High-Speed Mode) / Approx. 3.8 seconds/image (Normal Speed Mode), at 1280 x 960 dots

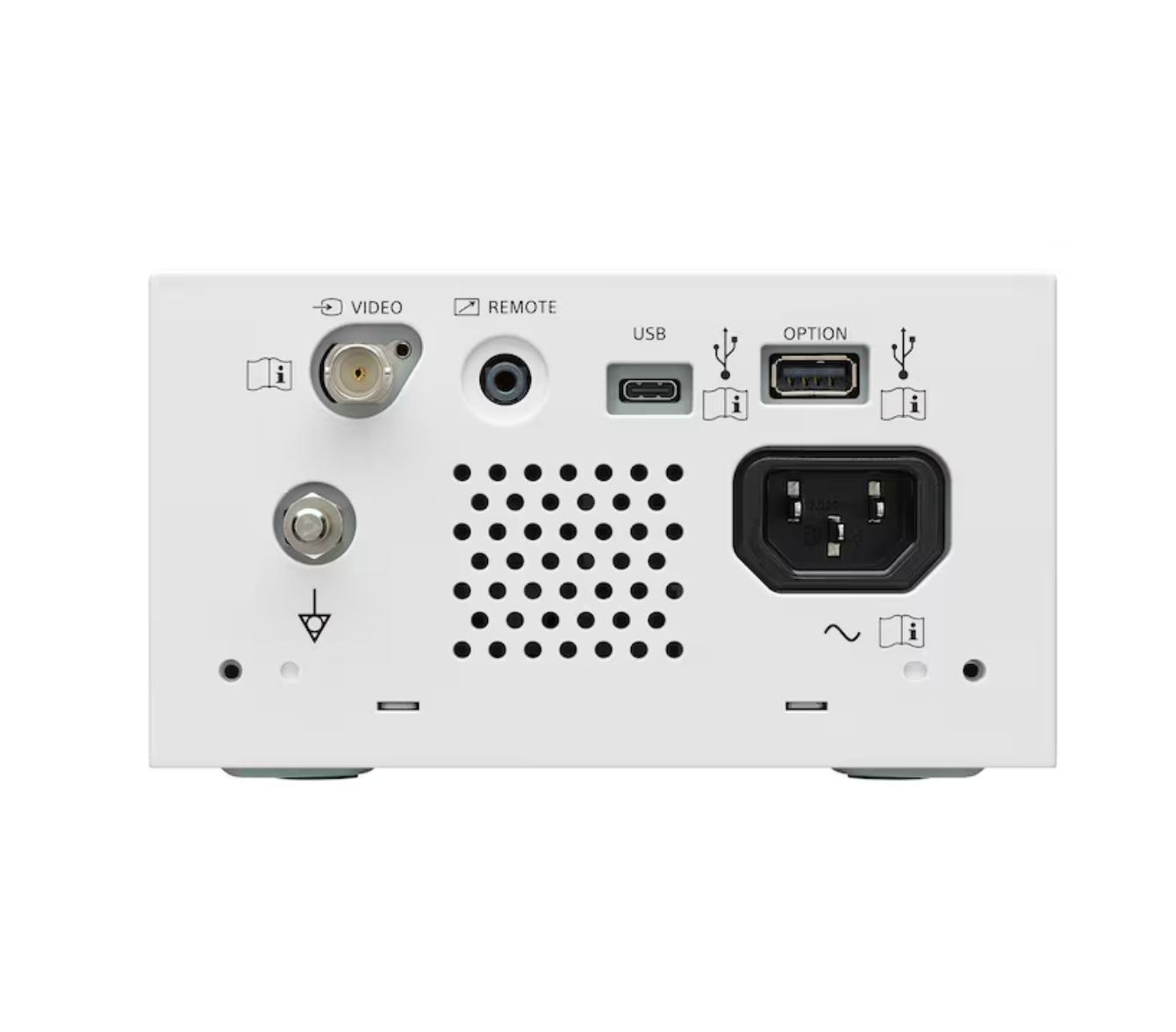

- Interface: Hi-Speed USB 2.0 (Type-C, data) and Analog BNC Video In (NTSC/PAL composite)
- Printing Method: Direct Thermal Printing
- Dimensions: Approx. 6.1"(W) x 3.5"(H) x 8.2"(D) / 154 x 88 x 208 mm
- Weight: Approx. 4.4 lbs (2.0 kg), printer only
- Power Requirements: AC 100 - 120V / 220 - 240V, 50/60Hz
- Supported Operating Systems (when connected via USB): Windows 10/11 (32/64-bit), with compatible mode for 898/897-series drivers
- Compliance: Distributed in the US and EU as a medical device, satisfies IEC 60601-1
